Product Details:
|
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining, Water Filtration |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump |
| Material: | PES | Weight: | OEM |
| Size: | OEM | Power: | OEM |
| Warranty: | 1 Year | Productivity: | 100L/Hour |

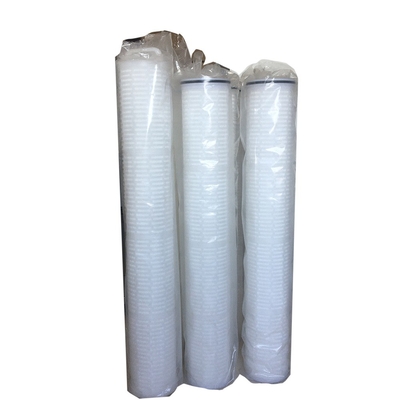

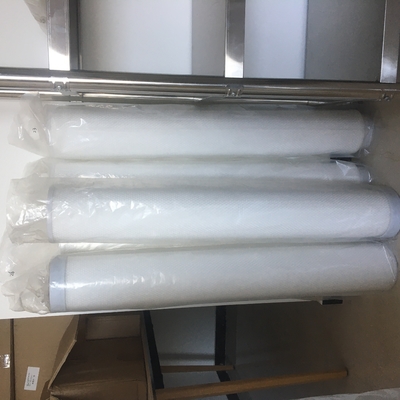

| Weight (KG): | 1.5 Kg | Product Name: | Water Filter Cartridge |
| Usage: | Liquid Filter | Color: | White |
| Capacity: | 0.3-200000T/H | Brand: | Hydwell |
| MOQ: | 10 | Length: | 10"/20"/30"/40" |
| Working Pressure: | OEM | Packing: | OEM |
| Key Words: | PES Membrane Pleated Filter | Port: | Tianjin |
Specifications | ||||||||||||
Materials Of Construction | Filter Media: | Polypropylene | ||||||||||
Support Layers: | Polypropylene | |||||||||||
Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um | |||||||||||
Inner core: | Polypropylene | |||||||||||

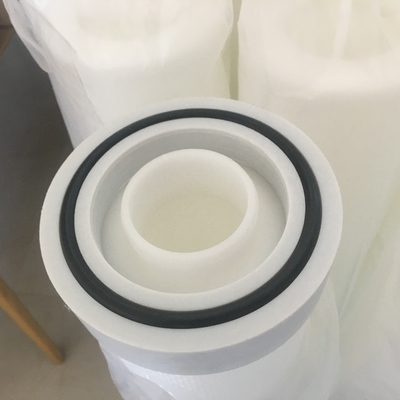

Outer Cage, End caps: | Polypropylene | |||||||||||
Seal Method: | Thermal Bonded, No Adhesives | |||||||||||
O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, , etc | |||||||||||
Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||||||||
Inner Diameter | 33mm(1.30'') | |||||||||||
Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||||||||
Filtration Area(m2) | 0.65 m2 per 10'' | |||||||||||
Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||||||||
Max.Operating Temperature: | 80℃ (172℉) at P≤1.0 bar (14psi) | |||||||||||
Max. Differential Pressure | ||||||||||||
Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||||||||
Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||||||||
PH Value compatibility: | 1-13 | |||||||||||
Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, | |||||||||||
Cumulative Time:15hours; | ||||||||||||
Flush with hot water at 82℃(180℉) for 30 minutes, | ||||||||||||
at P≤1.0 bar (14psi) -- Recommended. | ||||||||||||
Cartridge Safety | Endotoxin: | <0.25 EU/ml | ||||||||||
Extractables: | 0.03g / 10" | |||||||||||
