Product Details:
|
| Model: | Other | Year: | Other |
|---|---|---|---|
| OE NO.: | 751000FHX | Car Fitment: | Other |
| Material: | Filter Paper, Iron + Filter Paper | Type: | Fuel Filter, Diesel Fuel Filter |
| Size: | Standard | Reference NO.: | 751000FHX |
| Truck Model: | For Truck | Product Name: | Fuel Filter |
| Car Model: | Truck | Application: | Truck Engine |
| Warranty: | 6month | Service: | Online Service |
| Quality: | High-Quality | Packing: | Neutral Packing |
| Port: | Tianjin |
Application | Diesel |
Heat Deflection Shield | No |
Style Description | Turbine Filters |
Pressure Drop | Clean: 0.25PSI (1.7 kPa) |

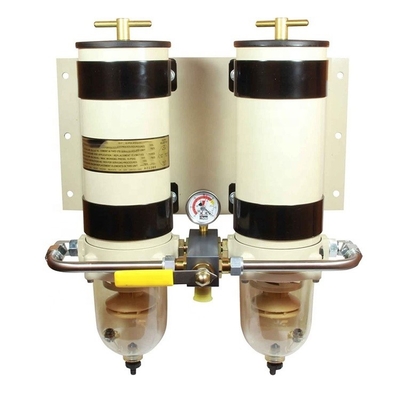

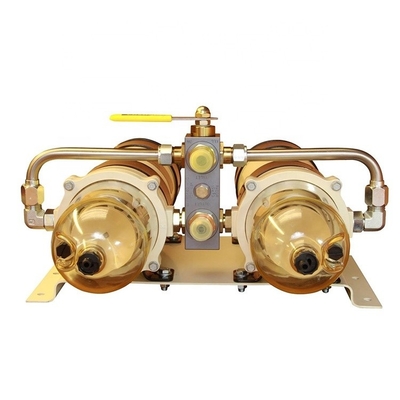

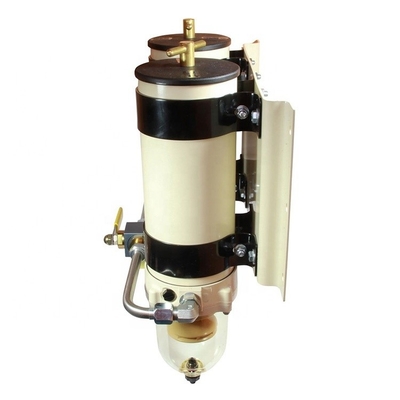

Model | 75/1000FHX |
Maximum Pressure | 15 PSI (1 bar) |
Maximum Flow Rate | Total: 1363 LPH (360 US GPH), Each: 681 LPH (180 US GPH) |
Dimensions | Element Removal Space: 254mm |
Integral Primer Pump | No |
Filter Configuration | Duplex |
Element | 10 Micron |
Country of Origin | China |
Bowl Style | Transparent Bowl |
Brand | Hydwell |
Width | 476mm (18.7") |
Size | 7/8"-14 UNF Male Ports (SAE J1926) |
Series | 1000 Series |
Height | 559mm (22") |
Valve Arrangement | Multi-function |
Depth | 279mm (11") |
